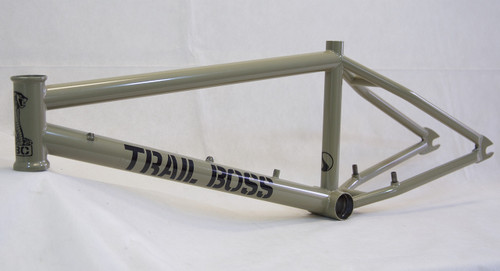

The TrailBoss is a trail frame that also makes a nice street and park bike, or bmx racer on the weekend.
Available with or without the classic front end gusset, contact email@example.com for more info.
The 3/8" axle slot drop outs are a no cost option built to order.
Head Tube Integrated
Down Tube Diameter 1.50″
Top Tube Diameter 1.25″
Bottom bracket Type Mid
Seat Tube Size 25.4″, Externally butted
Seat Stay O.D. 3/4″
Chain Stay O.D. 3/4″
Brake Mount Location - Chain Stay
Head Angle 74.5
Seat Tube Angle 71.0
Rear End Length-Slammed 13.75″
Top Tube Lengths 20.75, 21, 21.25, 21.5"
Bottom Bracket Height 11 5/8″
Drop Out Thickness 3/16″
Axle Slot Size 14mm or 3/8″
Gyro Tabs Optional removable
Stand over height 9.0
STOCK COLORS: Black, Coffee, Hemp
